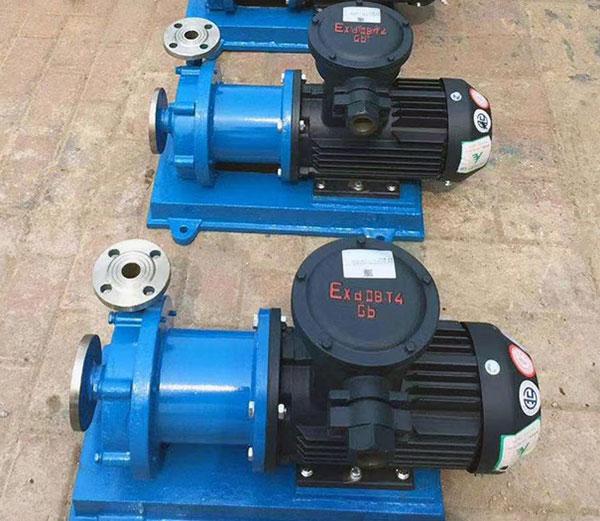

CQB-D Stainless Steel Magnetic Drive Pump
CQB-D Stainless Steel Magnetic Drive Pump
The CQB-D Stainless Steel Magnetic Drive Pump is constructed entirely from SS316L with electropolished wetted surfaces, combining the zero-leakage benefit of magnetic drive technology with the hygiene and corrosion resistance of high-grade stainless steel. This combination makes it ideal for pharmaceutical (cGMP), food and beverage, and high-purity chemical applications.
The magnetic coupling drive eliminates the mechanical shaft seal β the primary source of contamination risk in conventional stainless steel pumps. The smooth electropolished interior surfaces minimize biofilm adhesion and facilitate CIP (Clean-In-Place) and SIP (Sterilize-In-Place) procedures.
Compliant with FDA 21 CFR and EU 1935/2004 for food contact materials. Available with EHEDG and 3-A Sanitary certification for dairy and hygienic process applications.
Product Details
| Type | Magnetic drive centrifugal (sealless) |
| Wetted Material | SS316L (electropolished) |
| Compliance | FDA 21 CFR, EU 1935/2004, EHEDG, 3-A |
| Surface Finish | Ra β€ 0.8 Β΅m (electropolished) |
| CIP/SIP | Compatible (120Β°C SIP) |
| Flow Rate | 0.5 β 80 mΒ³/h |
| Head | 5 β 80 m |
| Application | Pharma, food, dairy, high-purity chemical |
