CDL Stainless Steel Vertical Multistage Pump
CDL Stainless Steel Vertical Multistage Pump

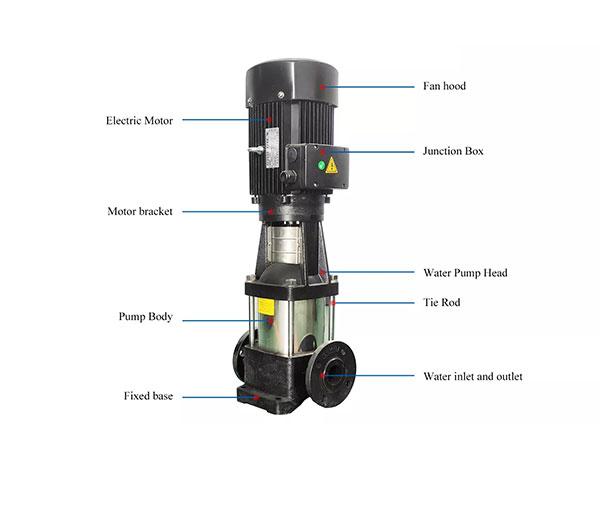

The CDL Stainless Steel Vertical Multistage Pump is an inline, vertical configuration multi-stage centrifugal pump in full stainless steel (SS304 or SS316) construction, combining high pressure capability with excellent corrosion resistance and a minimal installation footprint.
The inline suction/discharge configuration matches standard pipe dimensions, allowing direct installation in an existing pipeline without elbow connections. Multiple impeller stages (2β20 stages) achieve pressures up to 400 m head while maintaining high efficiency at design flow rates.
Standard applications include domestic hot and cold water pressurization, cooling water circuits, reverse osmosis high-pressure feed, and clean process water supply in food, beverage, and pharmaceutical plants.
Product Details
| Type | Vertical inline, multi-stage centrifugal |
| Stages | 2 β 20 |
| Material | SS304 / SS316 (full stainless) |
| Flow Rate | 0.5 β 60 mΒ³/h |
| Head | 20 β 400 m |
| Power | 0.37 β 37 kW |
| Application | Pressurization, RO, food, pharma water |
| Seal | Cartridge mechanical seal, FDA-compliant options |
